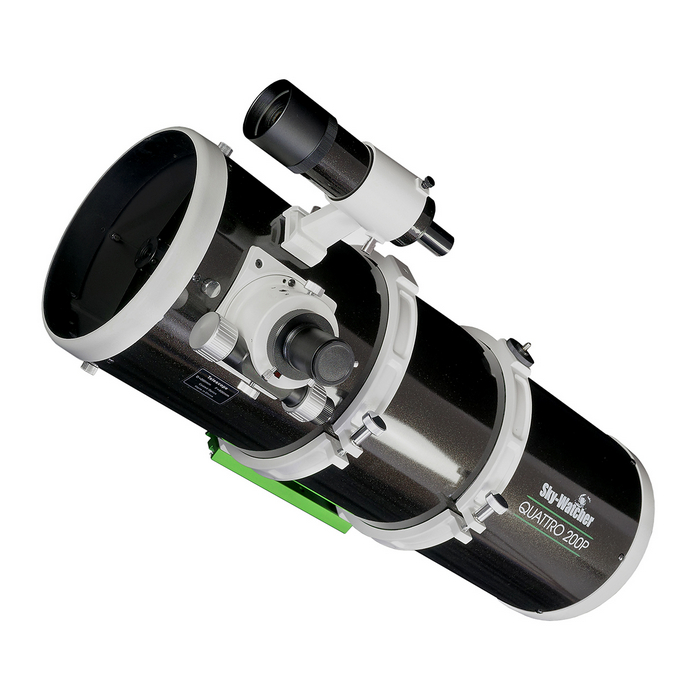

Skywatcher Quattro 200P 8" Imaging Newtonian Product Info

The Quattro imaging Newtonian is an affordable, large aperture astrograph, ideal for users searching for a fast imaging system that will work for both astrophotography and visual astronomy. Boasting a swift f/4 focal ratio, this astrograph can produce an exposure 6x faster than the average 8-inch f/10 Schmidt Cassegrain telescope. Although designed as an imaging optical tube, these Newtonians also produce bright and detailed viewing for visual astronomy.

Like all Sky-Watcher reflectors, the Quattro imaging Newtonian features borosilicate mirrors coated with Sky-Watcher’s proprietary Radiant ™ Aluminum Quartz (RAQ™), producing 94% reflectivity. The tube is constructed with rolled steel, then coated with Sky-Watcher’s signature glossy metal-flake Black Diamond finish. The OTA uses an oversized secondary mirror providing greater illumination for DSLRs and CCDs using full-frame sensors, and an optional coma corrector is available for those who want to take their imaging to the next level.

Specifications:

• Optical Design: Newtonian
• Mirror Coatings: Radiant Aluminum Quartz (RAQ)™ coatings with 94% reflectivity
• Glass Type: Borosilicate
• Primary Aperture: 203mm
• F/Ratio: 4
• Focal Length: 800mm
• Secondary Diameter: 70mm
• Secondary Obstruction (by diameter): 34%
• Secondary Obstruction by Area: 12%
• Dawes Limit: 0.57
• Rayleigh Limit: 0.69
• Limiting Mag.: 14
• Minimum Magnification: 29
• Maximum Magnification: 400
• Light Gathering (compared to next size down): 78%
• Focuser: 2" Dual Speed Crayford
• OTA Length (Retract/Ext.): 28"
• OTA Outer Diameter: 9.375"
• OTA Weight (with accessories): 9.25

Package Contents:

• Skywatcher Quattro 200P 8" Imaging Newtonian
