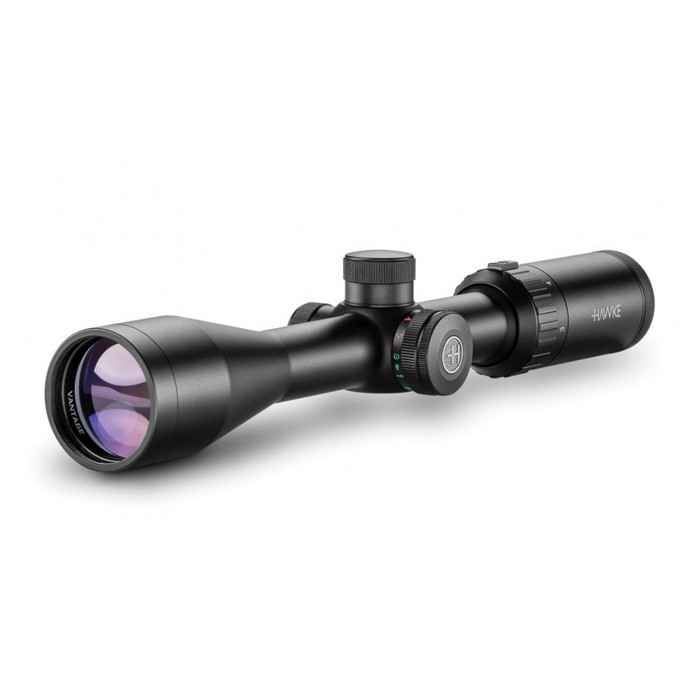

Hawke Vantage 3-9X40MM IR (30/30 Reticle) Riflescope Product Info
The Hawke Vantage 3-9 x 40mm Centre Cross IR Riflescope - 30/30 Reticle features 11 layers of fully multi-coated optics for excellent clarity and has a 1inch mono-tube chassis for superior strength.
A variant on the classic L4 reticle, the 30/30 Centre Cross offers 30″ spacing from post to post at 100yds, when on 4x magnification. This is equivalent to 83 cm at 100 m
Features:
- 11 layer fully multi-coated optics for excellent clarity
- 1 inch mono-tube chassis for superior strength
- Glass etched reticle with red and green illumination
- Rheostat on saddle offers 5 levels of brightness
- ¼ MOA low profile no-snag fingertip turrets
- Fast focus eyebell and high torque zoom ring
- Waterproof, Shockproof, Nitrogen purged.
- All calibre rated.
Specifications:
| Chassis |
1" Mono-tube |
| Optical System |
3-9× |
| Objective |
40 mm |
| Reticle |
30/30 Centre Cross |
| Illumination |
Red / Green - 5 Levels |
| Focus/Parallax |
Fixed - 91 m / 100yds |
| Field of View: m @ 100 m/ ft @ 100yds |
13 - 4.2m / 39 - 12.7ft |
| Eye Relief |
89 mm / 3.5″ |
| Length |
315 mm / 12.4″ |
| Weight |
430g / 15.2oz |
| Material |
Aluminium |
| Exit Pupil |
13 - 4 / 0.5 - 0.2″ |
| Ocular Type |
|
| Lens Coating |
Fully Multi-Coated - 11 Levels |
| Power Selector Style |
Knurled Posi-Grip |
| Focal Plane |
Second Focal Plane (SFP) |
| Elevation Increment |
¼ MOA |
| Elevation Adjustment Range |
100 MOA |
| Windage Increment |
¼ MOA |
| Windage Adjustment Range |
100 MOA |
| Turrent Caps |
Yes |
| Turrent Type |
Low Profile |
Package Contents:
- Hawke Vantage 3-9X40MM IR (30/30 Reticle) Riflescope
